M4AC MODULAR WEAPON SYSTEM

The M4AC is our adaptable AR-15 platform rifle, engineered for modular military and government applications.

Whether your mission calls for a quad rail CQB carbine or a mid-length M-LOK DMR platform, the M4AC delivers unparalleled flexibility with minimal logistic friction.

M4AC 14.5” Quad Rail

    • Configurable Gas System
      Offered in either direct impingement or short-stroke gas piston, allowing mission-specific reliability and simplified maintenance in high round count environments.

    • Mission-Tailored Barrel Lengths
      Available in 10.3”, 11.5”, 12.5”, and 14.5” options, each with tuned gas ports and dwell times for reliable suppressed and unsuppressed cycling.

    • Modular Handguard Interface
      Selectable M-LOK or quad rail handguard accommodates modern and legacy attachments while remaining backward compatible with existing fleet systems.

    • Simplified Armorer Support
      Built on the familiar M4 manual of arms with full mil-spec parts compatibility for global maintainability and low training burden.

    • Suppressor-Optimized Gas System
      Threaded muzzle with tuned gas configurations reduces overgassing and maximizes reliability in suppressed environments.

    • Caliber: 5.56 x 45mm NATO

    • Operating Principle: Direct Impingement or Piston (configurable)

    • Modes of Fire: Safe, Semi-Auto, Full-Auto (optional select-fire)

    • Barrel Lengths Available: 10.3" (262mm), 11.5", 12.5", 14.5" (368mm), 16" (406mm)

    • Barrel Profile: Modified M4 / SOCOM (depending on configuration)

    • Barrel Material: 4150 CMV, QPQ Black Nitride

    • Twist Rate: 1:7” RH (1:178mm)

    • Muzzle Thread: 1/2"-28

    • Flash Hider: A2 Style or optional advanced muzzle brake

    • Weight (w/o magazine):
       – 10.3": 5.88 lbs (2.66 kg)
      – 14.5": 6.36 lbs (2.88 kg)
      – 16": 7.4 lbs (3.3 kg)

    • Overall Length (Stock Extended):
       – 10.3": 25.55" (650mm)
      – 14.5": 29.75" (756mm)
      – 16": 36.3" (922mm)

    • Overall Length (Stock Collapsed):
       – 16": 33" (838mm)

    • Handguard Options: Free-float M-LOK or MIL-STD-1913 Quad Rail

    • Trigger Type: ERCT Flat Trigger

    • Trigger Pull: 5.5 lbs (2.5 kg / 25N)

    • Magazine Type: Polymer with Steel Feed Lips

    • Magazine Capacity: 30 rounds (10-round option available)

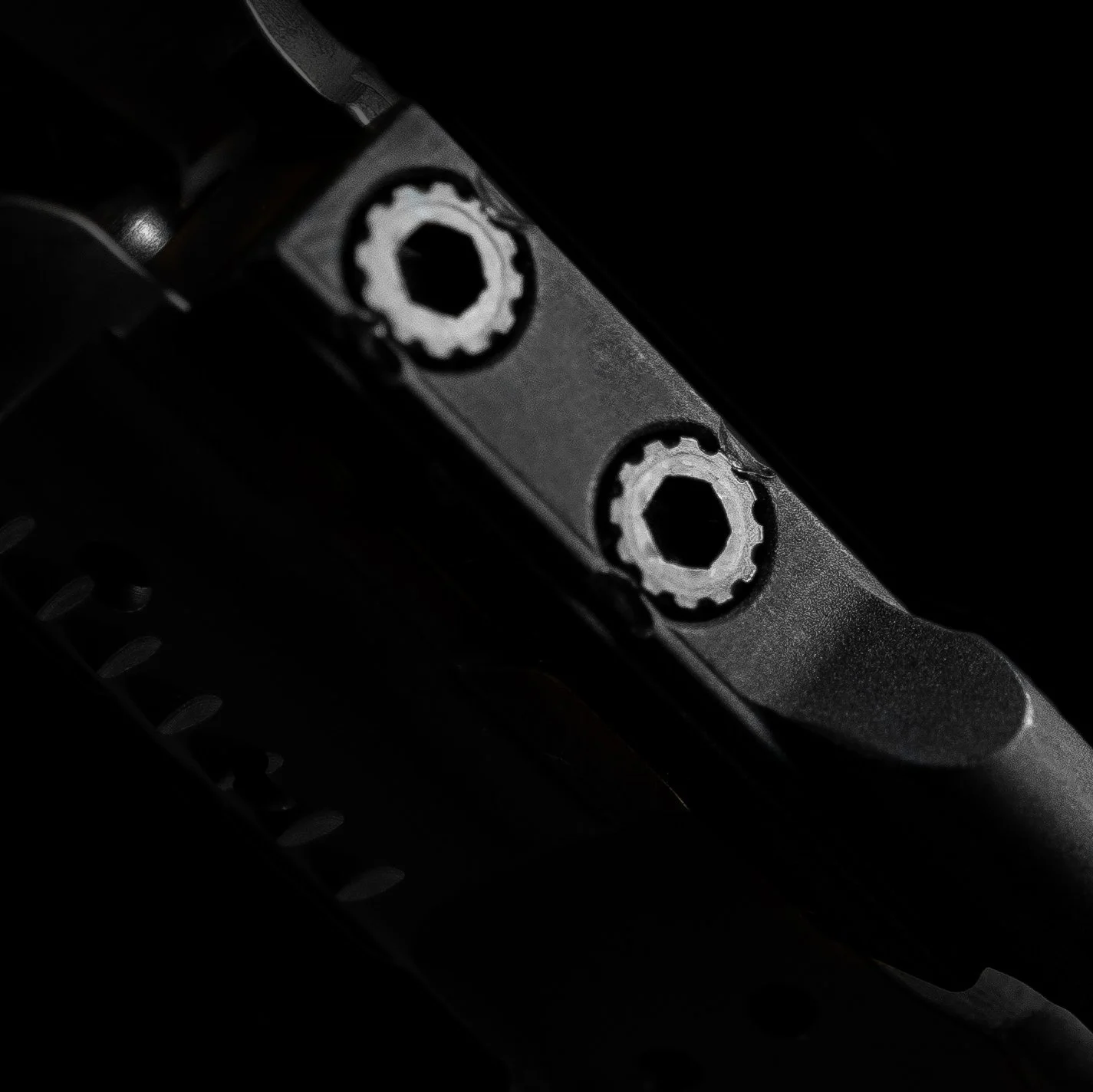

    • Bolt Carrier Group: AISI 9310 bolt, 8620 carrier, Black Nitride coated

    • Effective Range:
       – 10.3": 200–300m
      – 14.5": 500–600m

    • Rate of Fire: 700 RPM

    • Gas Block Diameter: 0.75" (1.905 cm)

    • Interior Finish: Hard Chrome per AMS-QQ-C-320, Class 2

    • Exterior Finish: Manganese Phosphate per MIL-DTL-16232, Type 2

    • Stock: 6-position enhanced adjustable buttstock

    • Sights: Compact flip-up iron sights (compatible with electronic optics)

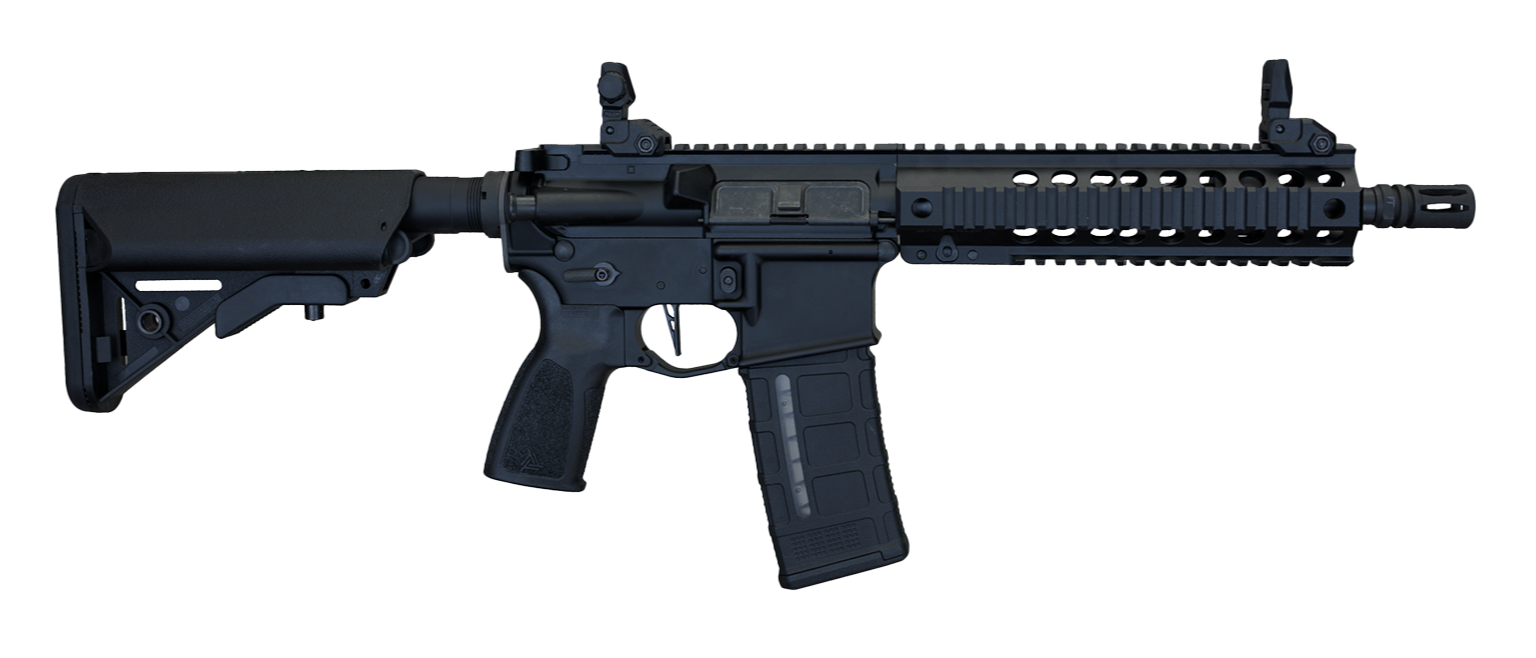

M4AC 10.3” Quad Rail

    • Configurable Gas System
      Offered in either direct impingement or short-stroke gas piston, allowing mission-specific reliability and simplified maintenance in high round count environments.

    • Mission-Tailored Barrel Lengths
      Available in 10.3”, 11.5”, 12.5”, and 14.5” options, each with tuned gas ports and dwell times for reliable suppressed and unsuppressed cycling.

    • Modular Handguard Interface
      Selectable M-LOK or quad rail handguard accommodates modern and legacy attachments while remaining backward compatible with existing fleet systems.

    • Simplified Armorer Support
      Built on the familiar M4 manual of arms with full mil-spec parts compatibility for global maintainability and low training burden.

    • Suppressor-Optimized Gas System
      Threaded muzzle with tuned gas configurations reduces overgassing and maximizes reliability in suppressed environments.

    • Caliber: 5.56 x 45mm NATO

    • Operating Principle: Direct Impingement or Piston (configurable)

    • Modes of Fire: Safe, Semi-Auto, Full-Auto (optional select-fire)

    • Barrel Lengths Available: 10.3" (262mm), 11.5", 12.5", 14.5" (368mm), 16" (406mm)

    • Barrel Profile: Modified M4 / SOCOM (depending on configuration)

    • Barrel Material: 4150 CMV, QPQ Black Nitride

    • Twist Rate: 1:7” RH (1:178mm)

    • Muzzle Thread: 1/2"-28

    • Flash Hider: A2 Style or optional advanced muzzle brake

    • Weight (w/o magazine):
       – 10.3": 5.88 lbs (2.66 kg)
      – 14.5": 6.36 lbs (2.88 kg)
      – 16": 7.4 lbs (3.3 kg)

    • Overall Length (Stock Extended):
       – 10.3": 25.55" (650mm)
      – 14.5": 29.75" (756mm)
      – 16": 36.3" (922mm)

    • Overall Length (Stock Collapsed):
       – 16": 33" (838mm)

    • Handguard Options: Free-float M-LOK or MIL-STD-1913 Quad Rail

    • Trigger Type: ERCT Flat Trigger

    • Trigger Pull: 5.5 lbs (2.5 kg / 25N)

    • Magazine Type: Polymer with Steel Feed Lips

    • Magazine Capacity: 30 rounds (10-round option available)

    • Bolt Carrier Group: AISI 9310 bolt, 8620 carrier, Black Nitride coated

    • Effective Range:
       – 10.3": 200–300m
      – 14.5": 500–600m

    • Rate of Fire: 700 RPM

    • Gas Block Diameter: 0.75" (1.905 cm)

    • Interior Finish: Hard Chrome per AMS-QQ-C-320, Class 2

    • Exterior Finish: Manganese Phosphate per MIL-DTL-16232, Type 2

    • Stock: 6-position enhanced adjustable buttstock

    • Sights: Compact flip-up iron sights (compatible with electronic optics)

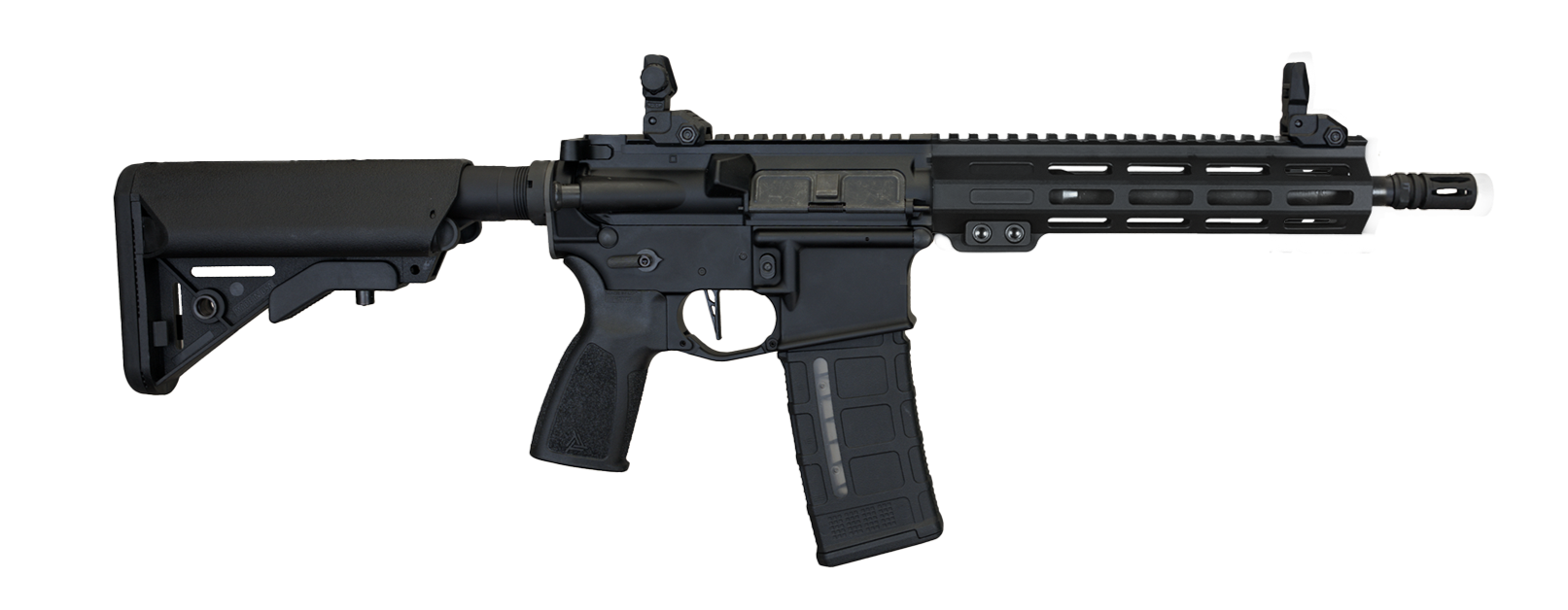

M4AC 10.3” M-LOK Rail

    • Configurable Gas System
      Offered in either direct impingement or short-stroke gas piston, allowing mission-specific reliability and simplified maintenance in high round count environments.

    • Mission-Tailored Barrel Lengths
      Available in 10.3”, 11.5”, 12.5”, and 14.5” options, each with tuned gas ports and dwell times for reliable suppressed and unsuppressed cycling.

    • Modular Handguard Interface
      Selectable M-LOK or quad rail handguard accommodates modern and legacy attachments while remaining backward compatible with existing fleet systems.

    • Simplified Armorer Support
      Built on the familiar M4 manual of arms with full mil-spec parts compatibility for global maintainability and low training burden.

    • Suppressor-Optimized Gas System
      Threaded muzzle with tuned gas configurations reduces overgassing and maximizes reliability in suppressed environments.

    • Caliber: 5.56 x 45mm NATO

    • Operating Principle: Direct Impingement or Piston (configurable)

    • Modes of Fire: Safe, Semi-Auto, Full-Auto (optional select-fire)

    • Barrel Lengths Available: 10.3" (262mm), 11.5", 12.5", 14.5" (368mm), 16" (406mm)

    • Barrel Profile: Modified M4 / SOCOM (depending on configuration)

    • Barrel Material: 4150 CMV, QPQ Black Nitride

    • Twist Rate: 1:7” RH (1:178mm)

    • Muzzle Thread: 1/2"-28

    • Flash Hider: A2 Style or optional advanced muzzle brake

    • Weight (w/o magazine):
       – 10.3": 5.88 lbs (2.66 kg)
      – 14.5": 6.36 lbs (2.88 kg)
      – 16": 7.4 lbs (3.3 kg)

    • Overall Length (Stock Extended):
       – 10.3": 25.55" (650mm)
      – 14.5": 29.75" (756mm)
      – 16": 36.3" (922mm)

    • Overall Length (Stock Collapsed):
       – 16": 33" (838mm)

    • Handguard Options: Free-float M-LOK or MIL-STD-1913 Quad Rail

    • Trigger Type: ERCT Flat Trigger

    • Trigger Pull: 5.5 lbs (2.5 kg / 25N)

    • Magazine Type: Polymer with Steel Feed Lips

    • Magazine Capacity: 30 rounds (10-round option available)

    • Bolt Carrier Group: AISI 9310 bolt, 8620 carrier, Black Nitride coated

    • Effective Range:
       – 10.3": 200–300m
      – 14.5": 500–600m

    • Rate of Fire: 700 RPM

    • Gas Block Diameter: 0.75" (1.905 cm)

    • Interior Finish: Hard Chrome per AMS-QQ-C-320, Class 2

    • Exterior Finish: Manganese Phosphate per MIL-DTL-16232, Type 2

    • Stock: 6-position enhanced adjustable buttstock

    • Sights: Compact flip-up iron sights (compatible with electronic optics)
