PDW
The PDW is a compact, next-generation .300 Blackout platform designed for applications where size, maneuverability, and capability are critical.
Built around a short-barreled configuration, the PDW provides a highly maneuverable platform while retaining the modularity and commonality of the M4 family. Chambered in .300 Blackout, it supports both supersonic and subsonic ammunition for mission-specific flexibility in close-quarters and confined environments.

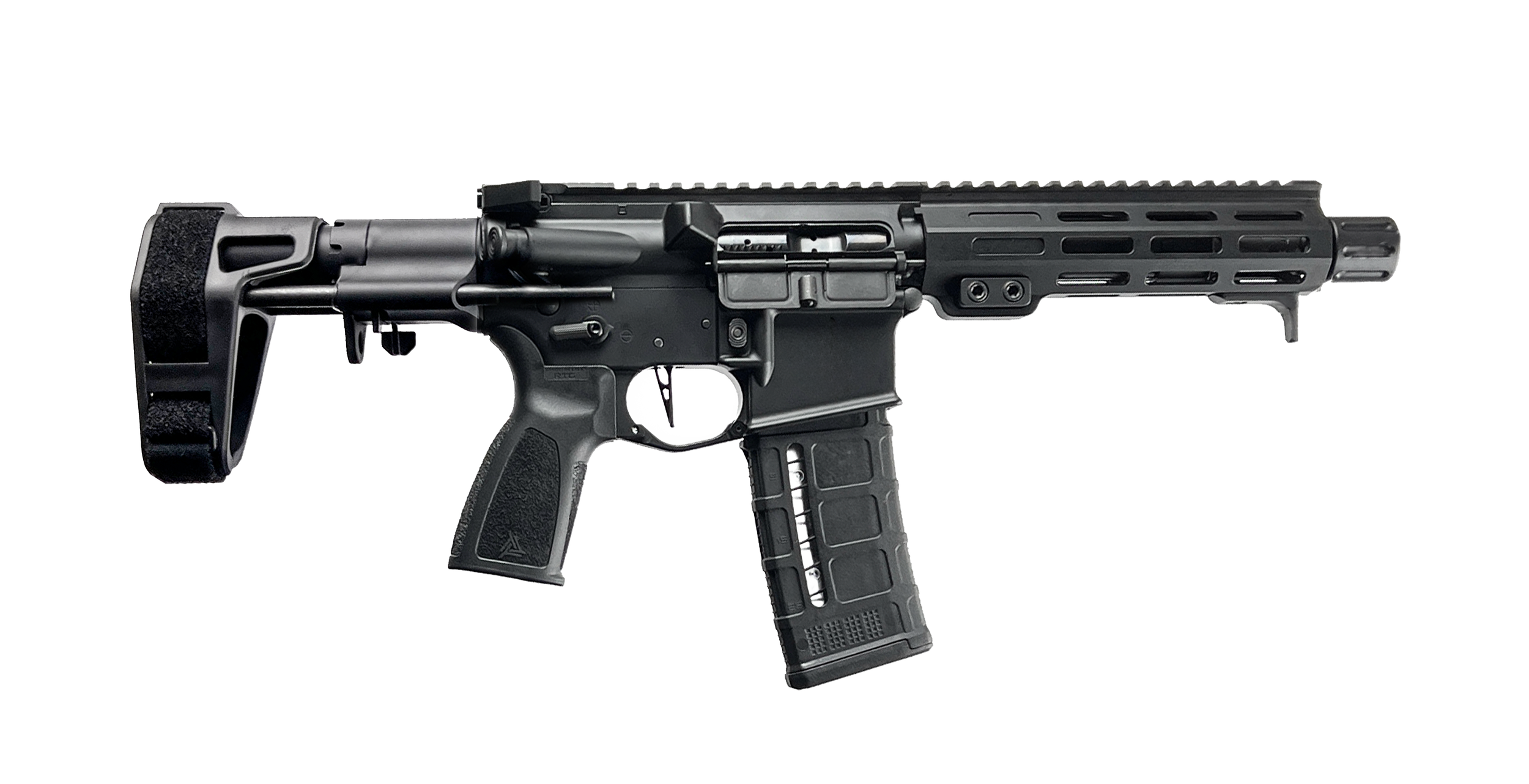

PDW 7.5” MLOK
-
Combat-Grade Dependability
Designed for resilience in demanding operational environments. Reliable across temperature extremes, elemental ingress, and sustained firing cycles.
Controlled Assembly and Proofing Protocol
Manufactured with strict inspection and assembly SOPs to guarantee mechanical consistency, traceability, and predictable weapon system performance.
Tier 1 Material Selection and Coatings
Manufactured from certified American bar stock and finished with MIL-STD coating technology to increase reliability, inhibit corrosion, and extend service life.
-
Caliber: .300 AAC Blackout
Operating Principle: Direct Impingement (internal piston)
Configurable Modes of Fire Include: Semi-auto, select-fire
Configurable Barrel Length: 7.5" (190.5mm)
Barrel Profile: Modified M4, Enhanced Taper (configurable)
Barrel Material: 4150 CMV 11595E
Barrel Exterior Finish: Heavy Manganese phosphate per MIL-DTL-16232 Type 2
Barrel Interior Finish: Electro polished and chrome plated
Twist Rate: 1:7" RH (1:178mm)
Muzzle Thread: 1/2"-28
Weight (Without Magazine): 7.5": 6.36 lbs (2.6kg)
Overall Length (Stock Extended): 7.5": 23.5" (596.9mm)
Overall Length (Stock Collapsed): 7.5": 20.3" (514.4mm)
Handguard: Free-float M-LOK, wedge locking
Trigger Shape: Flat
Trigger Pull: 5.5lbs (2.5kg / 25N)
Magazine Type: Aluminum 30rd DURAMAG®️
Bolt Carrier Group: HP* & MPI Carpenter 158 bolt, 8620 carrier, chrome phosphate finish
*For EU customers, the PDW is only MPI, as C.I.P. proofing is conducted in Europe
Stock: 6-position enhanced adjustable buttstock
